FLIR FH-669 R are ruggedized, multispectral fixed cameras that integrate industry-leading thermal imaging with 4K visible imaging to provide rapid visual verification of hot spots in early fire detection applications. When a hot spot or temperature change is detected, the contactless temperature measurement is sent to the operator through a connected Video Management System (VMS) for instantaneous assessment and deployment of response tactics. Custom scheduling provides security personnel the flexibility to enable and disable alarms depending on business hours and seasonality. Combining the power of thermal hot-spot detection with intelligent vehicle detection, false alarms from hot exhaust pipes can be dramatically reduced.

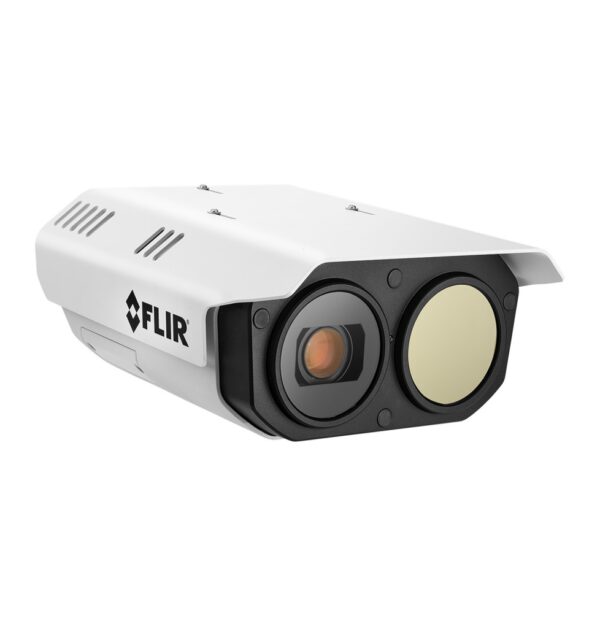

Flir FH-669 R thermal camera
SKU: 3377
Specifications
- Detector640 x 512
- Image frequency30 Hz
- Thermal sensitivity (NETD)<35 mK @ 25°C
- Temperature measurement range0°C ... 600°C
- Accuracyup to 100°C: ±5°C; below 150°C: ±5%, over 150°C: ±15%
- Field of view69° x 56°
- Spatial resolution1,1999 mrad
- Input channels2
- Output channels2
- Operating temperature range-40°C ... 70°C
- Ingress protectionIP67
- InterfaceEthernet
