IS540.RG smartphone:
– Operating system: Android 12
– Processor: Qualcomm QCM6490
– Memory: 8 GB RAM, 128 GB internal memory, microSD memory up to 128 GB
– Supported frequency bands:
2G GSM: 850/900/1800/1900 MHz
3G WCDMA: B1/2/4/5/8
4G LTE-FDD: B1/2/3/4/5/7/8/12 MFBI B13/14/17/20/25/26/28/29/30/66/71
4G LTE-TDD: B38/39/40/41/42/43/48
5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
– Size: 180.0 x 84.9 x 20.6 mm
– Weight: 422 g
– Display: 6“, 1080 x 2160 pixels
– Battery: 4400 mAh, replaceable
– Camera: 48 MP AF rear camera, 5 MP FF front camera
– SIM support: 1 nano SIM + eSIM
– Connections:
Wi-Fi 6: IEEE 802.11 a/b/g/n/ac/ax/e/k/r/v
Bluetooth® 5.2
GPS, A-GPS, Glonass, A-Glonass, Beidou, Galileo
Near Field Communication (NFC)
– Ports in/out: 16-pin ISM interface, USB-C
– Sensors: Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors
– Types of protection: IP68
– Operating temperature: -20 °C … +55 °C
IS-VS1A.RG INSPECTION EQUIPMENT
– Analog band width: 20 kHz … 500 kHz
– Input range: 94 dBAE / 100 dBAE
– Sampling rate: Res.: 2 MHz / 16 bit
– Noise floor: <12 μVRMS (95 kHz ... 300 kHz)
- Power consumption: <700 mW
- Size: 141.2 x 96 x 51.85 mm
- Weight: 219.3 g
- Operating temperature: -20 °C ... +55 °CIS-SU150F1.1 Sensor Ultrasonic:
- Frequency range: 100 kHz ... 450 kHz
- Operating temperature: -40 °C ... +120 °C
- Connector: SMB
- Shield Cross-Talk: > -80 dB
– Dimensions: 22.3 x 18.2 mm
– Weight: 29 g
IS-SU150F2.1 Sensor Ultrasonic:
– Frequency range: 100 kHz … 450 kHz
– Operating temperature: -40 °C … +120 °C
– Connector: SMB
– Shield Cross-Talk: > -80 dB
– Dimensions: 22.3 x 37.5 mm
– Weight: 63.4 g
IS-SC120BB1.1 Sensor Cable:
– Length: 120 cm 2 pcs. / Set
– Connector: SMB <-> SMB
– Sheathing: Braided hose
– Temperature range: -20 °C … +60 °C
– Weight: 20 g (each)
IS-WGLF1.1 Waveguide Lock:
– Diameter: 55 mm
– Weight: 79.5 g
IS-WGxx.1 Waveguide:
– Dimension: 220 x 7 mm
– Weight: 89.8 g

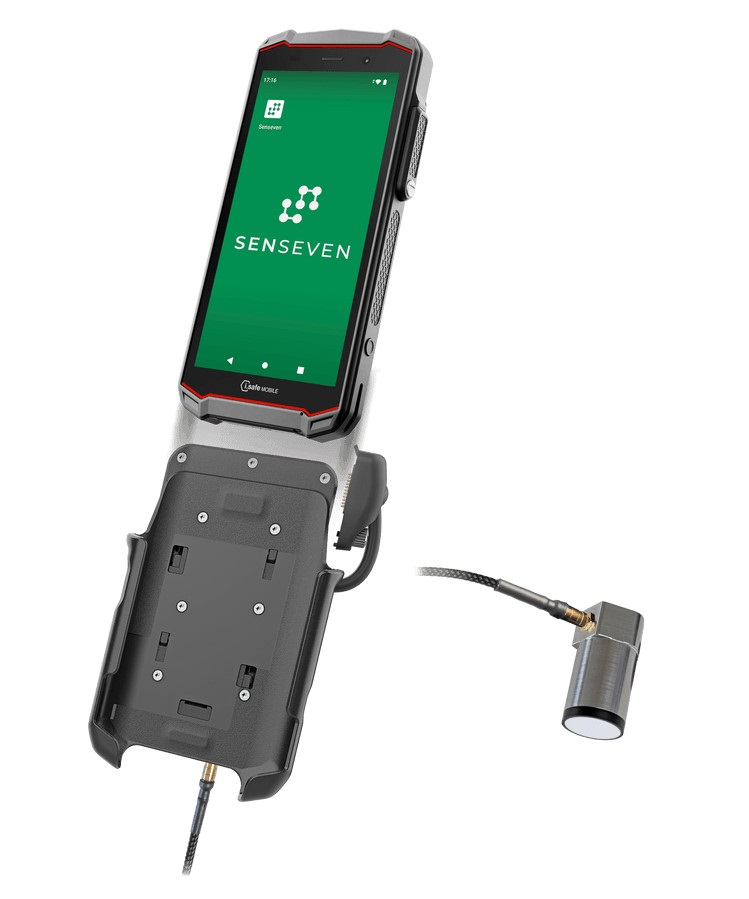

Standard set: Measuring electronic IS-VS1A.RG, Sensor IS-SU150F1.1, Sensor IS-SU150F2.1, Waveguide Lock IS-WGLF1.1, Waveguide IS-WGxx.1, 2 x Sensor Cable, Coupling medium, Coupling film, IS540.RG Smartphone, Battery, Power Adapter universal, Screwdriver, Display Protection Foil, Display Cleaning Cloth, Safety Instructions and Case.
