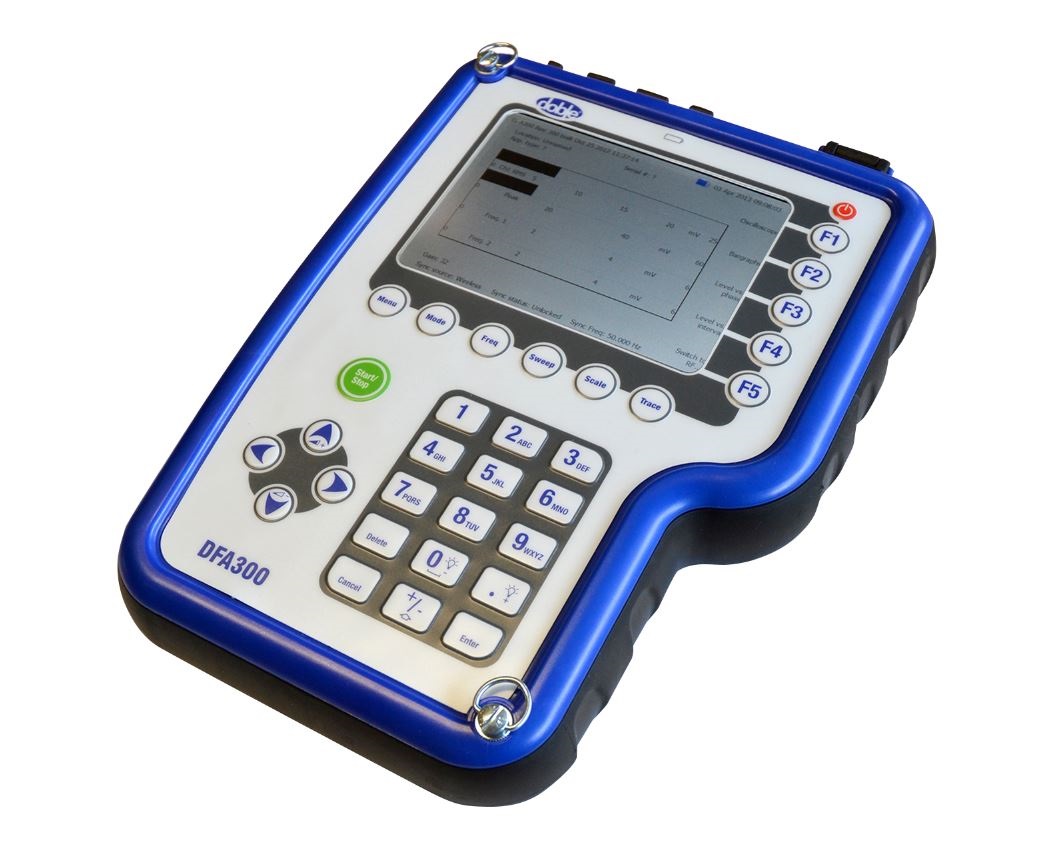

DFA 300 – Partial Discharge Surveyor and it combines radio frequency interference (RFI) and acoustic emission (AE). Perfect tool to identify and locate insulation defects.
– Safe and effective method for PD detection
– Instrument uses both RFI and acoustic technology
– Registers RFI from apparatus with insulation problems including PD and arcing
– Locate and diagnose internal problems using the acoustic sensor on grounded surfaces
Technical specifications:
Acoustic emission channel:
– Inputs: 1 channel
– Connector: BNC
– Input Impedance: 50Ω or 22kΩ, software switchable (low noise preamp: 22kΩ only)
– AE Operating: Frequency 10 kHz to 500 kHz at -3dB points
UHF channel:
– Inputs: 1 channel
– Connector: BNC
– Input Impedance: 50Ω
– Bandwidth: 50-1000 MHz with 6 MHz RBW
– Accuracy: ± 100 kHz
– Detection Types: Peak and average detector
– Sweep Processing: Continuous, Average, Max Hold and differential
Power supply:
– External Supply: External DC adapter, 12V @ 2A
– Internal Battery: Li-Ion, high capacity 7.2V, 91 Wh
– Battery Life: >6 hours
– Charging Time: ± 3 hours
Mechanical:
– Instrument: 225 x 310 x 70 mm (WxHxD)
– Weight: 2.4 kg
– Total Weight: 6.0 kg incl. instrument, transport case, manuals, CD and charger
LCD screen:
– Display: TFT, 6.4” Transreflective
– Size (W x H): 132 x100 mm
– Resolution: 640 x 480 pixels, 256 colours
Data storage:
– Internal: NV Flash memory (SD)
– Externa:l USB storage class compliant, USB Flash Drive/Hard Disk Drive
– Data Transfer Measurements can be downloaded to a PC
Environmental:
– Enclosure: IP64 – top covers closed, IP51 – top covers open
– Transport: Case IP67
Standard set: instrument PDS300, transport case, antennas, acoustic sensor, battery charger, neck strap, wireless synchronization adapter, software.
