Standard set: Doble M5500, test set, power supply, user documentation, SFRA Software v6 Professional, standard SFRA test lead – 18 m., shorting leads, reference box, safety ground lead, power cord and USB cable.

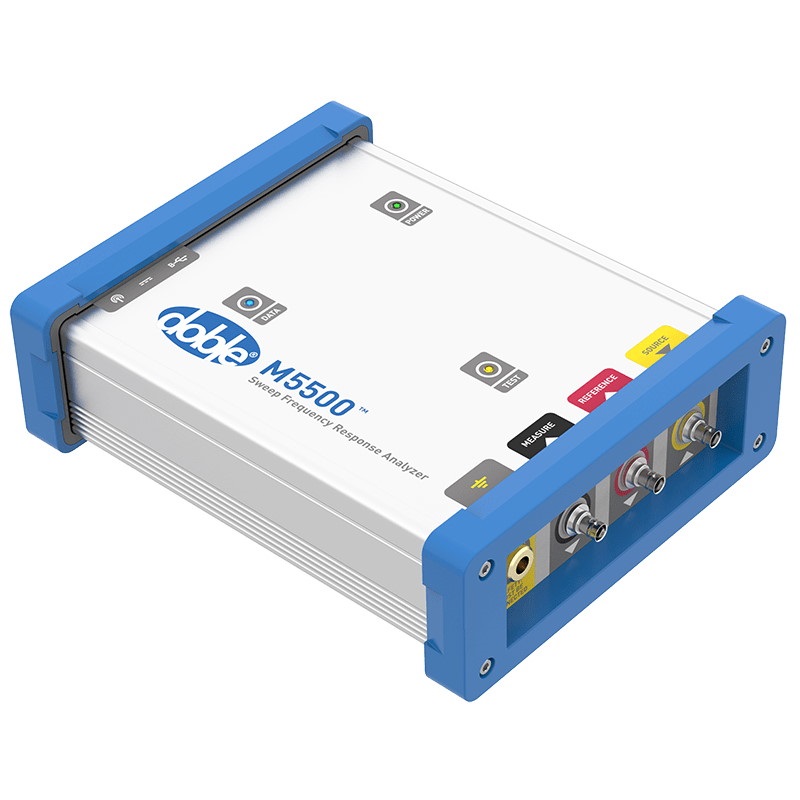

Doble M5500 SFRA testing device
SKU: 3032
Specifications
- SamplingSimultaneous
- Sampling rate100 MS/s
- Sample points per sweepup to 5000 points
- Input channels2
- Impedance50 Ω
- Measurement voltage range10 V p-p
- Output channels1
- Impedance50 Ω
- Output voltage20 V p-p (10 V p-p at 50 Ohms)
- InterfacesUSB/Wireless
- Mains supply24 VDC
- Operating temperature-25°C ... + 55°C
- Dimensions31 x 24 x 9.4 cm
- Weight3.2 kg
- SafetyLVD 2014/35/EU, EN 61010-1:2010
- EMCDirective 2014/30/EU, EN 61326-1:2013
