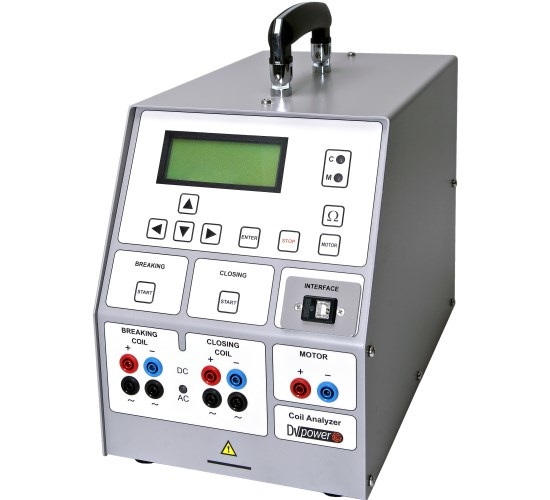

• Lightweight – only 10 kg
• Powerful – up to 40 A
• Voltage 10 V to 300 V DC; 10 V – 250 V AC
• Coil resistance measurement
• Coil current measurement
• Minimum trip voltage test
• Undervoltage release test
• Fully automatic operation
Technical data:
Mains Power Supply:
• Connection: according to IEC/EN60320-1; UL498, CSA 22.2
• Voltage single phase: 110 V – 240 V AC, -15% – +10%
• Frequency: 50/60Hz
Output data:
• Coils output DC Voltage: 10 V to 300 V DC
• Coils output AC Voltage: 10 V to 250 V AC; 50/60 Hz; true RMS
• Motor output DC Voltage: 10 V to 250 V DC
• Output current: max 40 A
Measurement:
• Voltage: 10 V – 300 V DC or 10 V – 250 V AC
• Current: 1 A – 50 A
• Accuracy: ±(0,5% rdg + 0,5% FS)
Coil resistance measurement:
• Measuring range / Resolution: 1 – 99,9 / 0,1; 100 – 999 / 1
• Typical accuracy: ±(0,5% + 0,5 F.S.)
Environment conditions:
• Operating temperature: -10°C – +50°C
• Storage and transportation: -25°C – +70°C
• Humidity: 5% – 95% relative humidity, non-condensing
Dimensions and Weight:
• Dimensions: 202 mm x 261 mm x 480 mm
• Weight: 10 kg
Safety Standards:
• European standards: LVD 2006/95/EC; EN 61010-1
• International standards: IEC 61010-1; UL 61010-1; CAN/CSA-C22.2 No. 61010-1, 2nd edition, including Amendment 1
Electromagnetic Compatibility (EMC):
• Emission: EN 61326-1
• Immunity: EN 61326-1
Mechanical protection: IP 43
