Standard set: DV Power FRA500, DV-FRA PC software, USB cable, Mains power cable, Ground (PE) cable, Transport case, Bluetooth adapter.

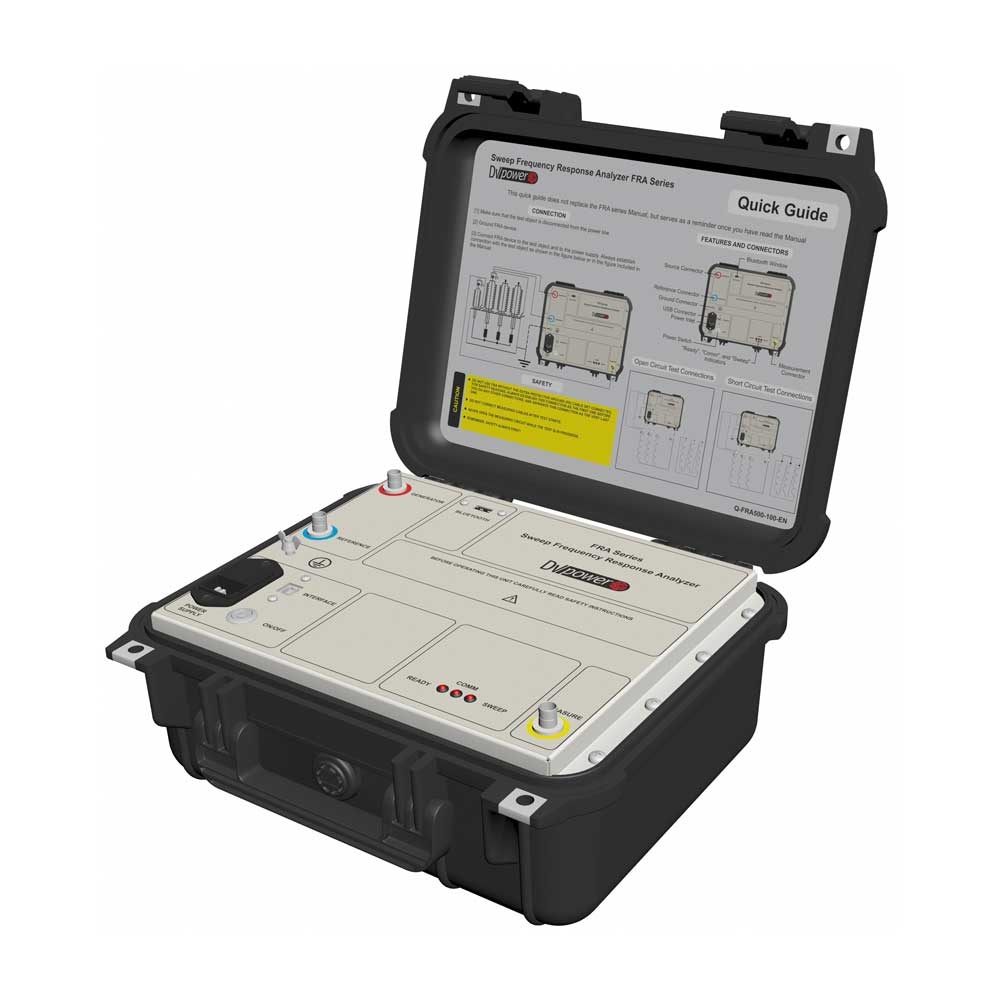

DVpower FRA500 SFRA testing device
SKU: 3031
Specifications
- Sweep analysis
- Range0,1 Hz ... 25 MHz
- Resolution0,01%
- Accuracy0,01%
- Durationless than 20 seconds (20 Hz ... 2 MHz)
- SamplingSimultaneous
- Sampling rate1 MS/s
- Sample points per sweepup to 32000 points
- Dynamic measurement
- Range>150 dB
- Resolution0,0005 dB
- Accuracy±0,1 dB (+10 dB ... -40 dB), ±0,5 dB (below -40 dB)
- Input channels2
- Impedance50 Ω
- Measurement voltage range0,1 V ... 12 V p-p
- Output channels1
- Impedance50 Ω
- Output voltage0,2 V ... 24 V p-p in 0,2 V p-p steps
- InterfacesBluetooth, USB
- Mains supply90 V ... 264 V AC, 47 Hz ... 63 Hz
- Operating temperature-20°C ... +55°C
- Dimensions340 x 290 x 150 mm
- Weight4,5 kg
- SafetyLVD 2014/35/EU, EN 61010-1:2010
- EMCDirective 2014/30/EU, EN 61326-1:2013
