FLIR A50 smart sensor cameras are ideal for users who want built-in, on-camera analytics and alarm capabilities for condition monitoring and early fire detection applications. With an integrated visual camera, and ONVIF S compatibility, FLIR A50 cameras are a flexible, configurable solution to meet the unique needs of automation customers across a broad range of industries. The cameras are easy to add, set up, and operate in HMI/SCADA systems, offering automation system solution providers a running start. When used as a system component for cloud and Industrial Internet of Things (IIoT) solutions, A50 cameras can help companies protect assets, improve safety, maximize uptime, and minimize maintenance costs.

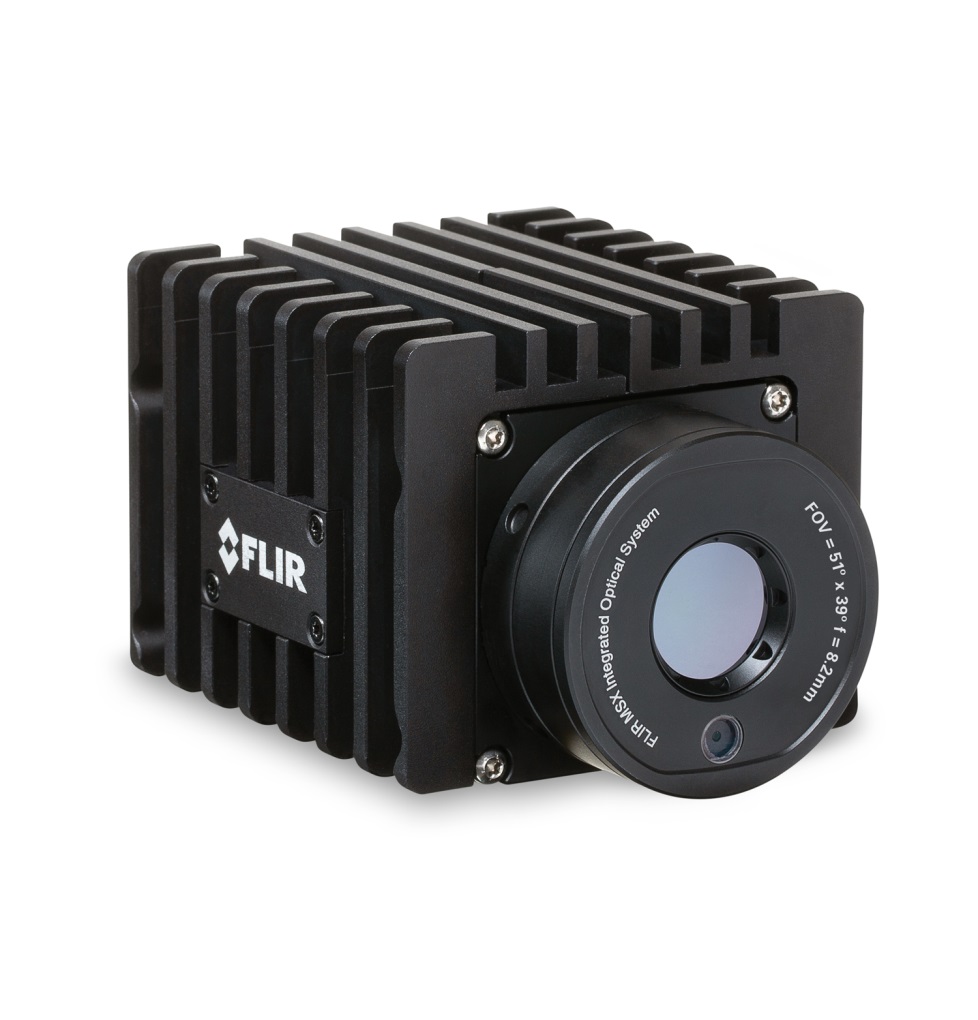

Flir A50 thermal camera
SKU: 3111
Specifications
- Detector464 x 348
- Image frequency30 Hz
- Thermal sensitivity (NETD)<35 mK
- Temperature measurement range-20°C ... 175°C, 175°C ... 1000°C
- Accuracy±2°C or ±2% of reading
- Field of view51°
- Spatial resolution2.1 mrad/pixel
- Input channels2
- Output channels3
- FocusFixed, adjustable with included focus tool
- Spotmeter10
- Max/Min/Avg temperatures in area10
- Operating temperature range-20°C ... 50°C
- Ingress protectionIP66
- InterfaceM12 Male 12-pin A-coded
- Dimmensions107 x 67 x 57 mm
- Weight0.52 kg
