Number of channels: 2 analog channels + 4 logic channels (standard)
Measurement ranges: 10 mV … 50 V/div (10 div full-scale), 12 ranges, Resolution: 1/100 of range
Max. rated voltage: Between terminals: 400 VDC, Between terminal to earth: 300 VAC, DC CAT II
Frequency characteristics: DC to 50 kHz (-3 dB)
Time axis (Memory mode): 100 µs … 5 min/div, 20 ranges,at 100 points/div resolution, three steps of time-axis magnification from ×2 to ×10, and 9 steps of time-axis compression from ×1/2 to ×1/1,000
Recording intervals (RMS mode): 1 ms … 1 min., 16 settings, sampling period: 200 μs (fixed) (for AC voltage/current, 1,000 RMS values/sec.), envelope mode always on
Measurement functions: Memory recorder, RMS recorder (50/60 Hz, DC only)
Memory capacity: 12-bits x 2M-words/ch (1 word = 2 bytes)
Removable storage: CF card TYPE I (Up to 2 GB)
Display: 4.3-inch color LCD (480 × 272 pixels)
Interfaces: USB 2.0 mini-B
Power supply: AC Adapter Z1005: 100 V … 240 VAC (50/60 Hz) , 30 VA max.
Battery Pack 9780: 3 VA, continuous operating time of approx. 2 hr., charging time of 200 min. using the AC adapter (option)
External DC power: 10 V … 16 V, 10 VA max.
Dimensions: 176 x 101 x 41 mm
Mass: 600 g.

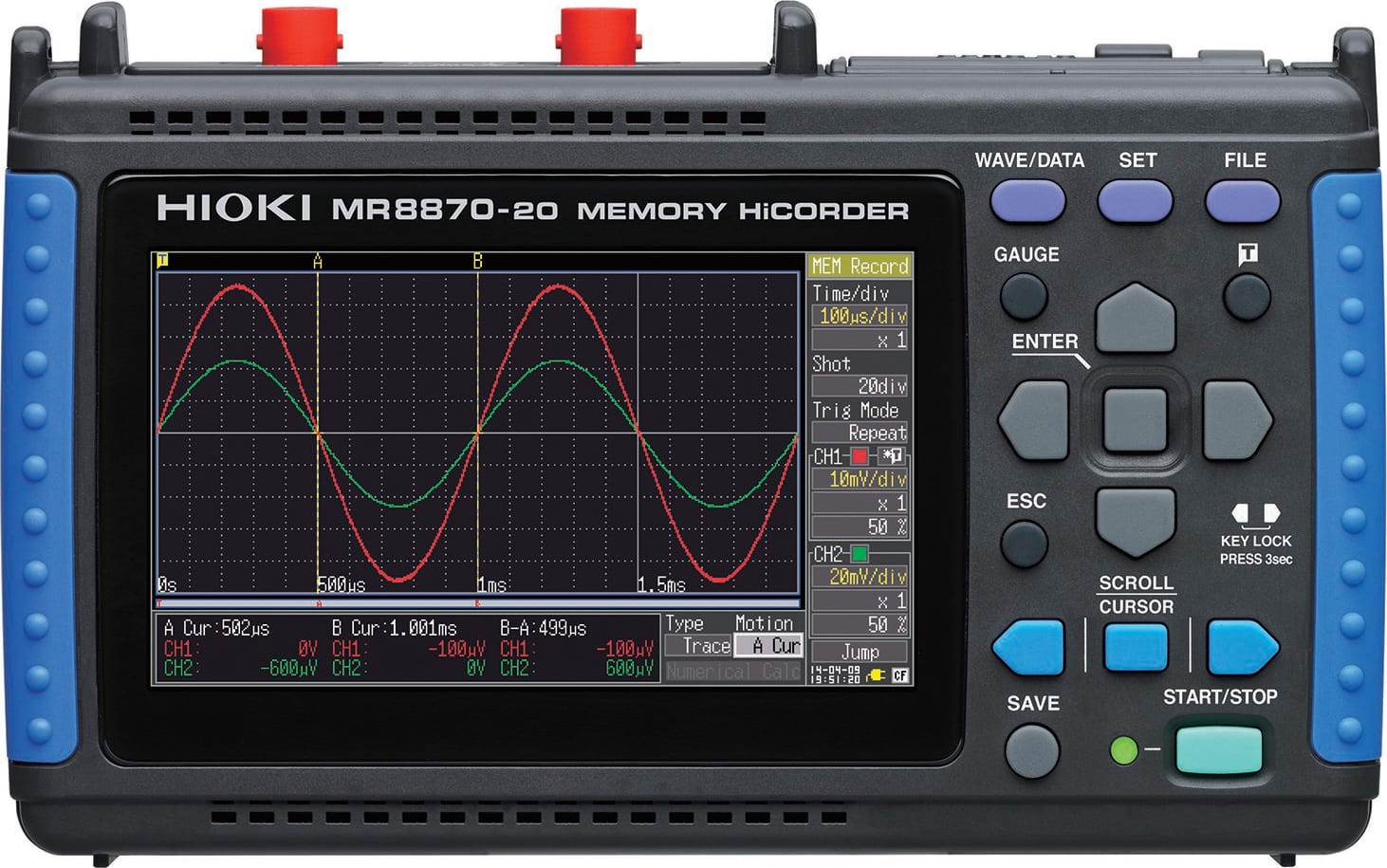

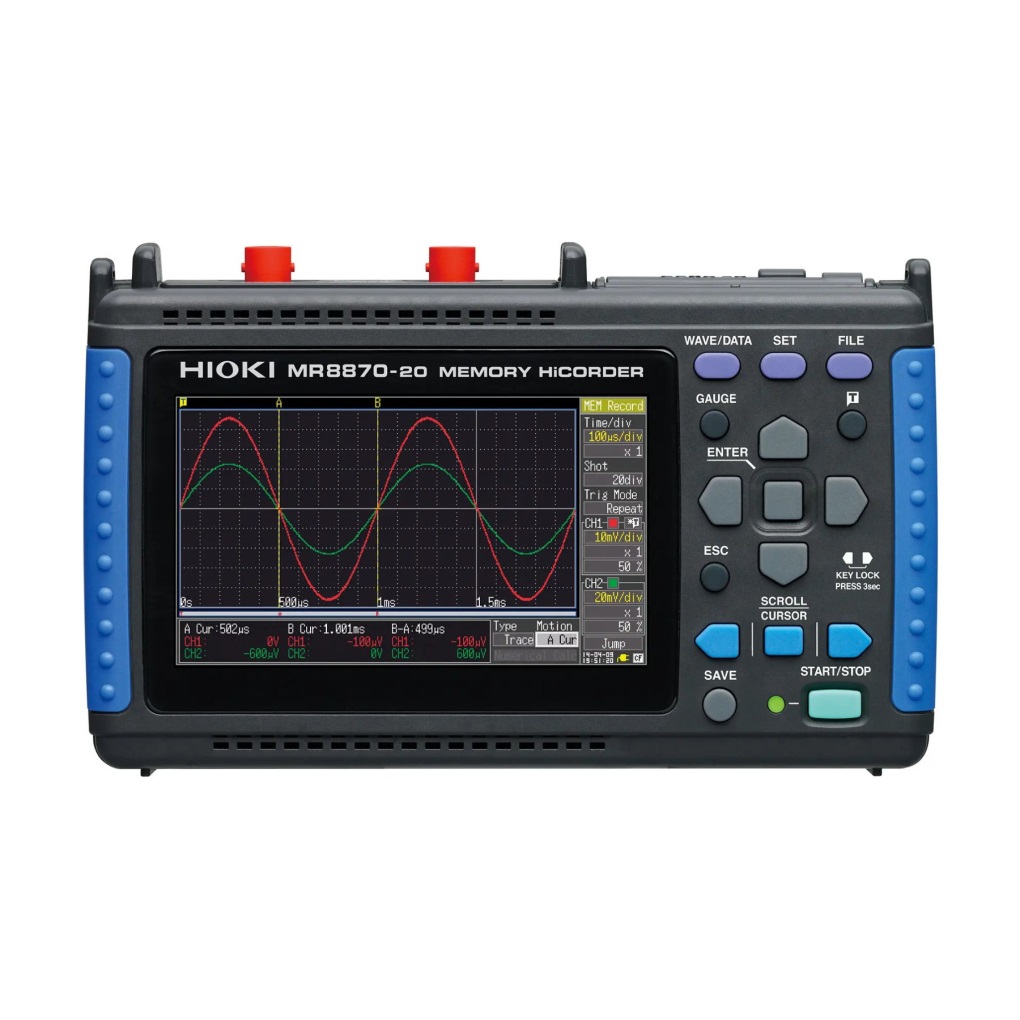

Standard set: Hioki MR 8870, Instruction manual, Measurement guide, AC adapter, Strap, USB cable, Application disk, Protection sheet.
