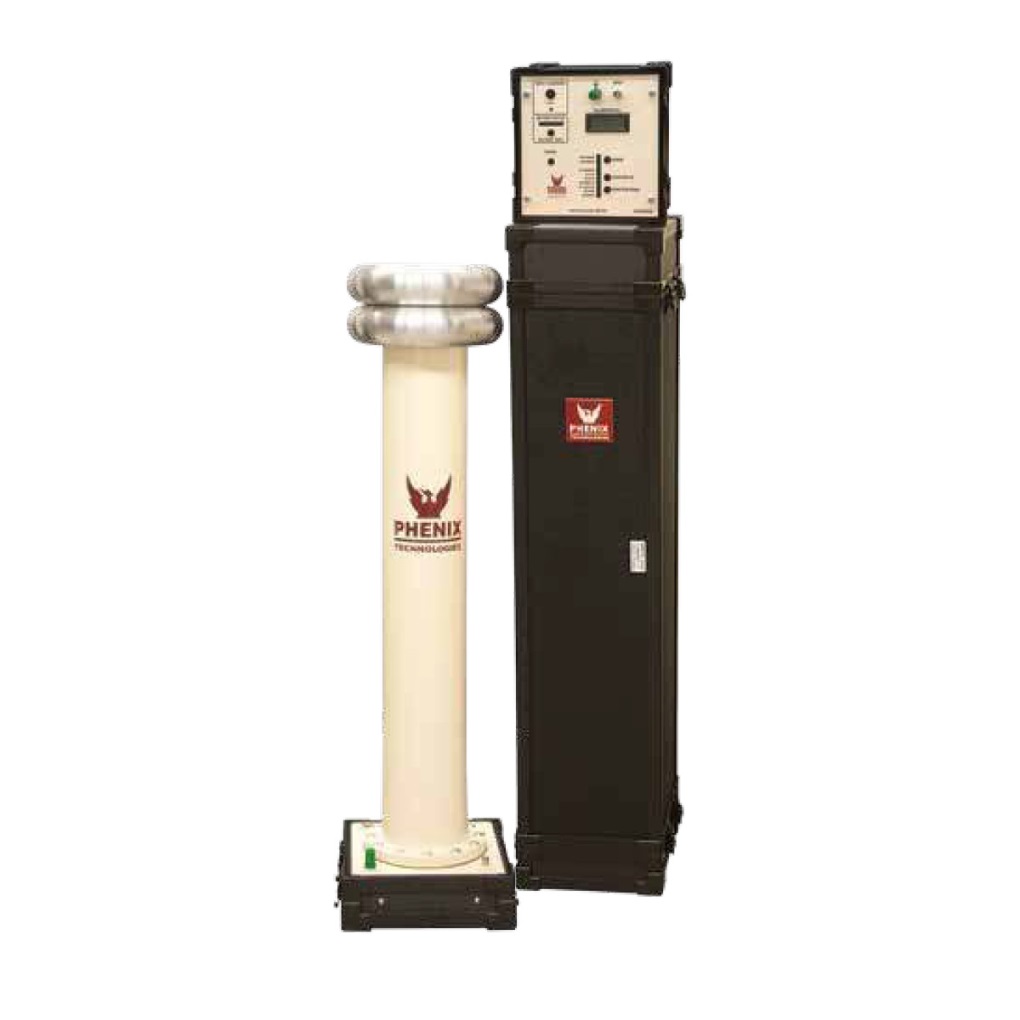

Phenix Technologies KVM200A – AC/DC Kilovoltmeters voltage measurement functions include AC Average, AC RMS, AC Peak, AC Peak/√2, DC Average, DC Peak, DC Ripple. Traceable to NIST standards, units can be used for calibration and general high voltage measurements. Voltage divider can also be used with other measuring devices such as an oscilloscope or multimeter. These units are precise, reliable, and satisfy a wide range of testing applications.
Specifications
– Input power: 100 V … 240 V AC, 0.4 A, 47 Hz … 63 Hz, Single Phase
– Battery power: 9.6 V, Ni-MH, 3200 mA
– Input charging jack: +15 V DC, 1.5 A
Measurement data
– Range: 0 kV … 20 kV, resolution: 1 V
– Range: 0 kV … 200 kV, resolution: 10 V
High voltage input
– Low range: 0 kV … 20 kV AC/DC
– High range: 0 kV … 200 kV AC/DC
– Peak AC: 0 kV … 200 kV
Divider impedance
– Resistance: 760 MΩ
– Capacitance: 100 pF
– Ratio: 10 000 : 1
Voltage Measurement Functions / Frequency Range
– AC average
– AC RMS
– AC peak
– AC peak / √ 2
– DC average
– DC peak
– DC ripple
Uncertainty
– Metering Head: 0.5 % of reading
– Divider Ratio: 0.4 %
– Overall: 0.75 % of reading
General information
– Operating temperature: 0 °C … 40 °C
– Dimensions: 241 x 241 x 1 270 mm
– Weight: 20 kg
