Standard set: Proceq DY-225, battery pack, battery charger with USB cable, test disc, draw bolt, torx screwdriver, software, operating instructions, certificate of conformity, carrying case.

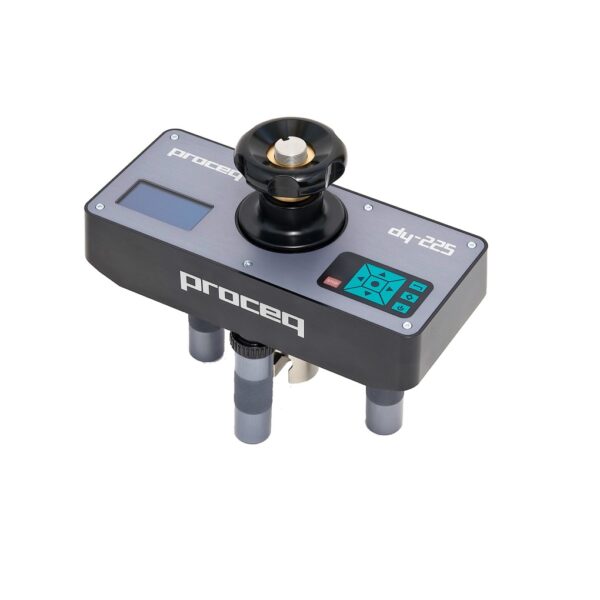

Proceq DY-225 pull-off adhesion tester
SKU: 3104
4835,00 € without VAT
Specifications
- Working range1.3 MPa ... 12.7 MPa
- Tensile force2.5 kN ... 25 kN
- Maximum stroke5 mm
- Maximum pulling speed2.2 mm/min
- Calibration accuracyEN ISO 7500-1 Class 1 (±1 % from 20 % of maximum force)
- Memory capacity100 measurements
- ConnectionsUSB
- Battery capacity1500 mAh, 3.7V (min. 80 measurements)
- IP classificationIP54
- Operating temperature-10°C ... 50°C
- Dimensions109 x 240 x 205.5 mm
- Weight4.5 kg
- EN 1542Yes
- EN 1015-12Yes
- EN 1348Yes
- ISO 4624Yes
- ASTM D 4541Yes
- ASTM C 1583Yes
- ASTM D 7234Yes
- ASTM D 7522Yes
- ZTV-INGYes
- SIA 281/3Yes
- JGJ 110Yes
- JGJ 126Yes
- JGJ 144Yes
- ГОСТ 22690Yes
