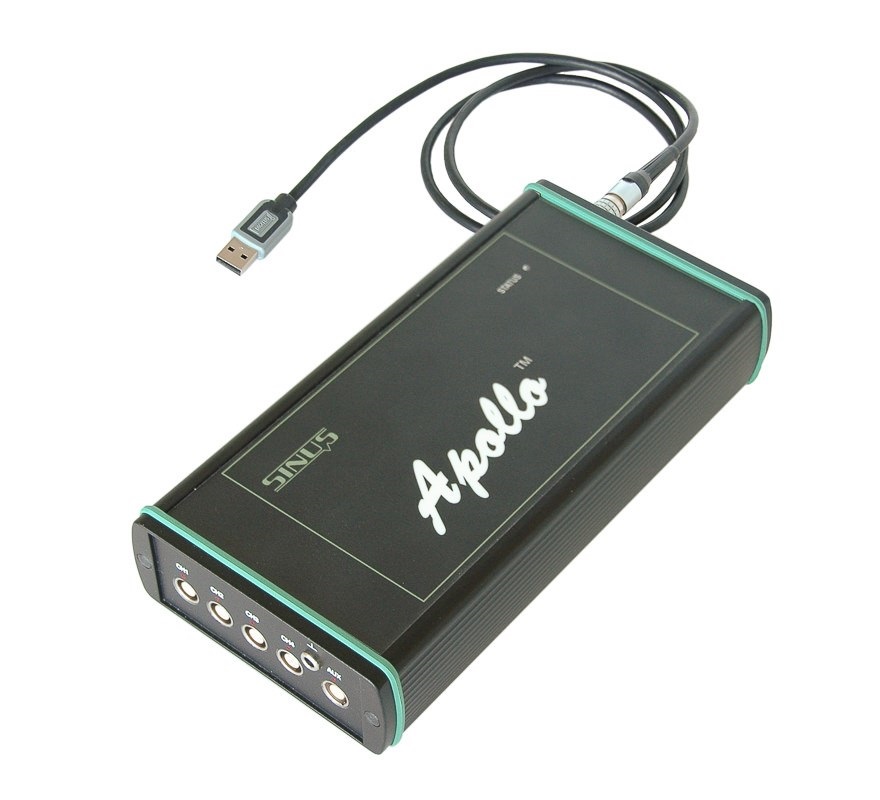

The new SINUS Apollo Box is our flexible and inexpensive 4-channel front-end device with USB 2.0 interface. The robust and small box can easily be used with any Windows Personal Computer and a wide range of application software.
It is a universal portable measuring system for acoustic, vibration and engineering measurements in general, representing the latest generation of mobile PC-controlled instruments on the basis of the new Apollo™ hardware platform.
Technical specifications:
Input channels 1-4:
• Resolution: 24-bit
• Real-time bandwidth: DC … 20 kHz @ 4 channels (40 / 80 kHz on request)
• Dynamic range: 110 dB
• Sample rates: 51.2 kHz (102.4 kHz / 204.8 kHz on request)
• Max. input voltage: ± 10 V peak
• Amplification: 0 dB, 20 dB
• Overload detection: yes
• Microphone power supply: ± 14 V, + 20 / 63 / 200 V switchable (with BNC versions on AUX only)
AUX channels:
• Digital Input: 2x TTL
• Digital Output: 2x TTL
• Microphone power supply: ± 14 V, + 20 / 63 / 200 V switchable
Slow channels 1-8:
• Resolution: 24-bit
• Sample rate: 200 Hz
• Input voltage range: -25 V … +25 V
Output channels 1-2:
• Resolution: 24-bit
• Real-time bandwidth: DC … 20 (40 / 80 kHz on request)
• Max. output voltage: ± 3.16 Vpeak
Service channels:
• Trigger: 2x Trigger / Tacho, trigger level settable via software
• Synchronization: Sample-synchronous synchronization on external clock (e.g. Soundbook_MK2)
Physical characteristics:
• Dimensions: 200 mm x 100 mm x 35 mm
• Weight: 750 g
• USB cable: customized USB cable 1 m
• Power supply: via USB 2
Environmental conditions:
• Protection rating: IP40
• Humidity: 30 % … 90 %
• Temperature range: -10 °C … +50 °C
