Vision Research Phantom TMX 7510 high-speed camera is designed for true high-speed performance. The back side illuminated (BSI) high-speed camera sensor delivers unprecedented resolution and speed combinations. Its focus on data management makes work flow easy.

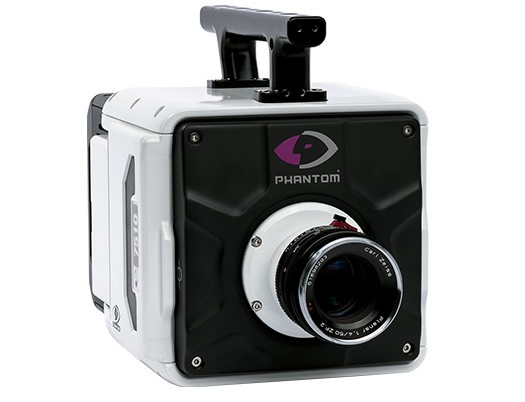

Vision Research Phantom TMX 7510 high-speed camera
SKU: 3305
Specifications
- Maximum resolution1 280 x 800 pixels
- Bit depth12-bit
- Maximum speed at full resolution76 000 FPS
- Maximum speed at reduced resolution1 750 000 FPS
- Minimum exposure1 μs
- Memory storageoptional, up to 8 TB
- TriggeringYes
- RAMup to 512 GB
- Changeable lensYes
- PC interface10 Gb and Gigabit
- Dimmensions17.8 x 17.8 x 29.7 cm
- Weight9.1 kg
