Standard set: Chauvin Arnoux C.A 6549, Carrying bag, 2 safety leads 3 m long with HV plug and HV crocodile clip (red/blue), guarded safety plug 3 m long with an HV plug with rear connection and an HV crocodile clip (black), lead with rear connection (blue) 0.35 m long, mains power cable, communication lead, simplified operating manual, operating manual.

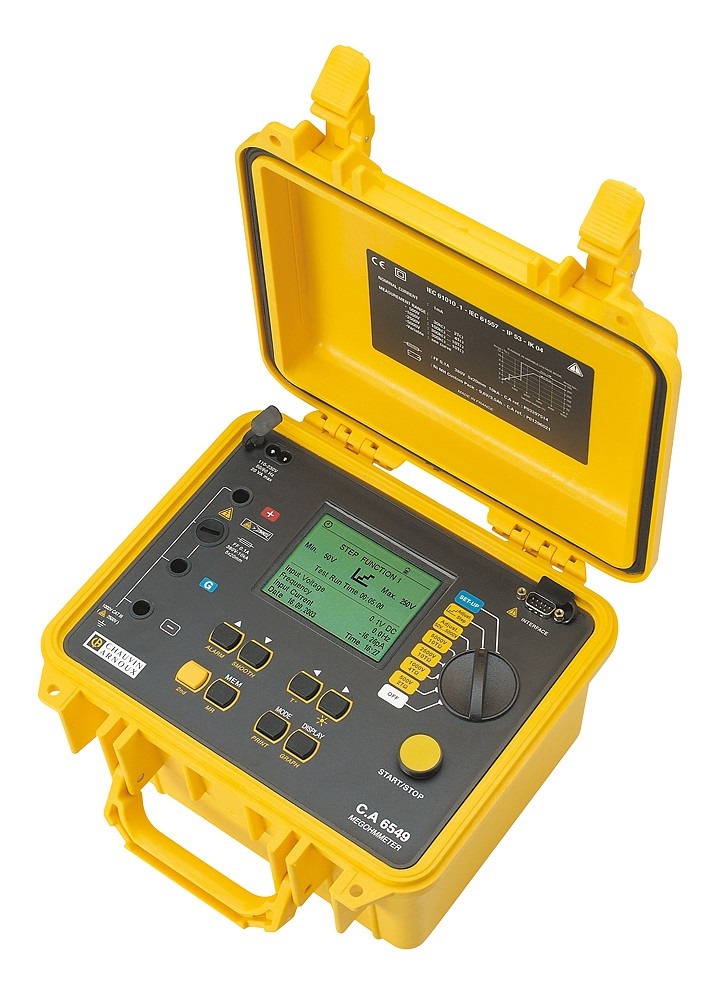

Chauvin Arnoux C.A 6549 Insulation tester
SKU: 2902
Specifications
- Test voltage range (Vdc)40 V ... 5000 V
- Voltage steps (Vdc)500 / 1000 / 2500 / 5000 V, adjustable in steps: 10 V or 100 V increments
- Insulation resistance measuring range (EN 61557-2)10 kΩ ... 10 TΩ
- Calculation of DD, DAR, PIYes
- Leakage current measurementYes
- Range0,000 nA ... 3000 μA
- Capacitance measurementYes
- Range0,005 μF ... 49,99 μF
- Short circuit / charge current< 1,6 mAdc ±5% (3,1 mA maximum at start-up)
- Voltage measurement AC / DC1,0 V ... 4000 V
- Programmable timerYes
- Automatic discharge after testYes
- Audible warningsYes
- RS 232Yes
- Number of memory levels / memory locations128 kB
- Graph R(t)Yes
