The thermal image up to 1280 x 1024 pixels will show you the smallest of details and assure excellent measurement accuracy. The FLIR A8580 thermal imaging camera is a broad band and designed to provide the best thermal measurement performance together with the most advanced connectivity. They are ideal for Scientists and R&D professionals that are working on the most demanding applications.

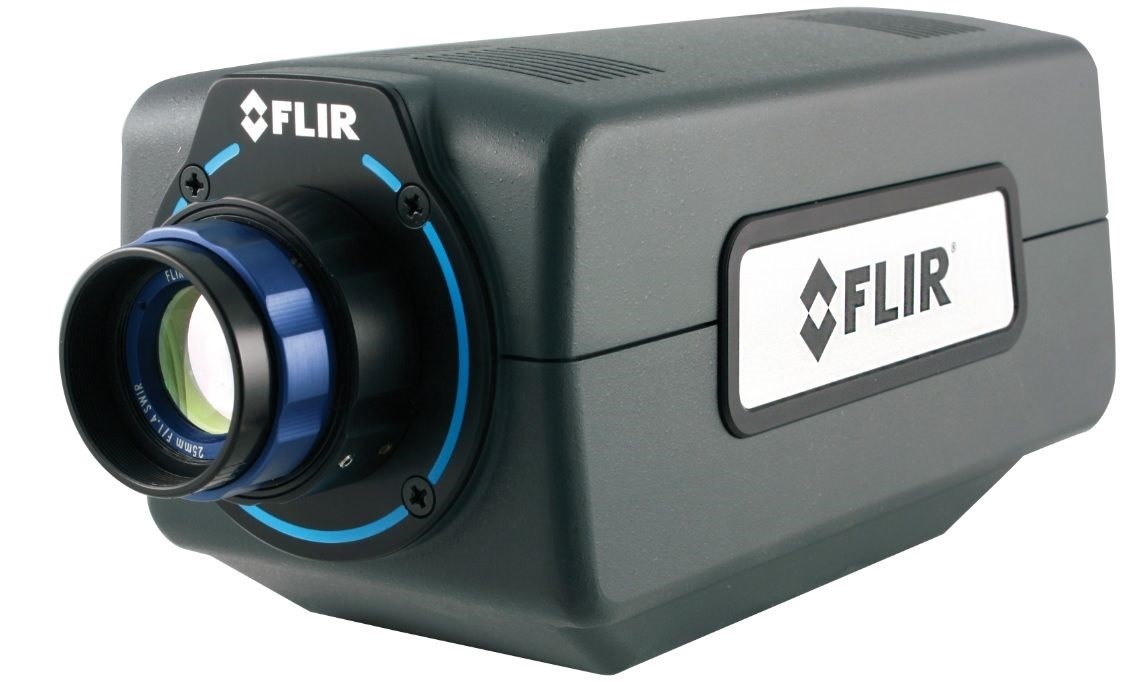

Flir A8580 thermal camera
SKU: 3207
Specifications
- Detector1280 x 1024
- Spectral range1,5 µm ... 5 µm
- Detector typeCooled
- Image frequencyProgrammable; up to 45Hz (GigE), 60Hz (CXP)
- Max image frequency3709 Hz (windowing)
- Subwindow modeup to 32 x 4; step 32 columns, 4 rows
- Thermal sensitivity (NETD)<40 mK
- Temperature measurement range-20 °C ... +300 °C
- Accuracy±2 °C (±1°C typical) or ±2% of reading
- Integration time480 ns to Full Frame
- Step160ns
- Readout modesIWR / ITR
- Field of viewDepending on lens
- Filter wheelYes
- Focusmotorized (compatible w/manual lenses)
- External triggerYes
- SynchronizationYes
- Labview, Matlab compatabilityYes
- Changeable lensYes
- Input/outputSync In, Sync Out
- InterfacesGenlCam (GigE, CXP), RS-232
- Operating temperature range-20 °C ... +55 °C
- Dimmensions226 x 117 x 135 mm
- Weight3,7 kg
