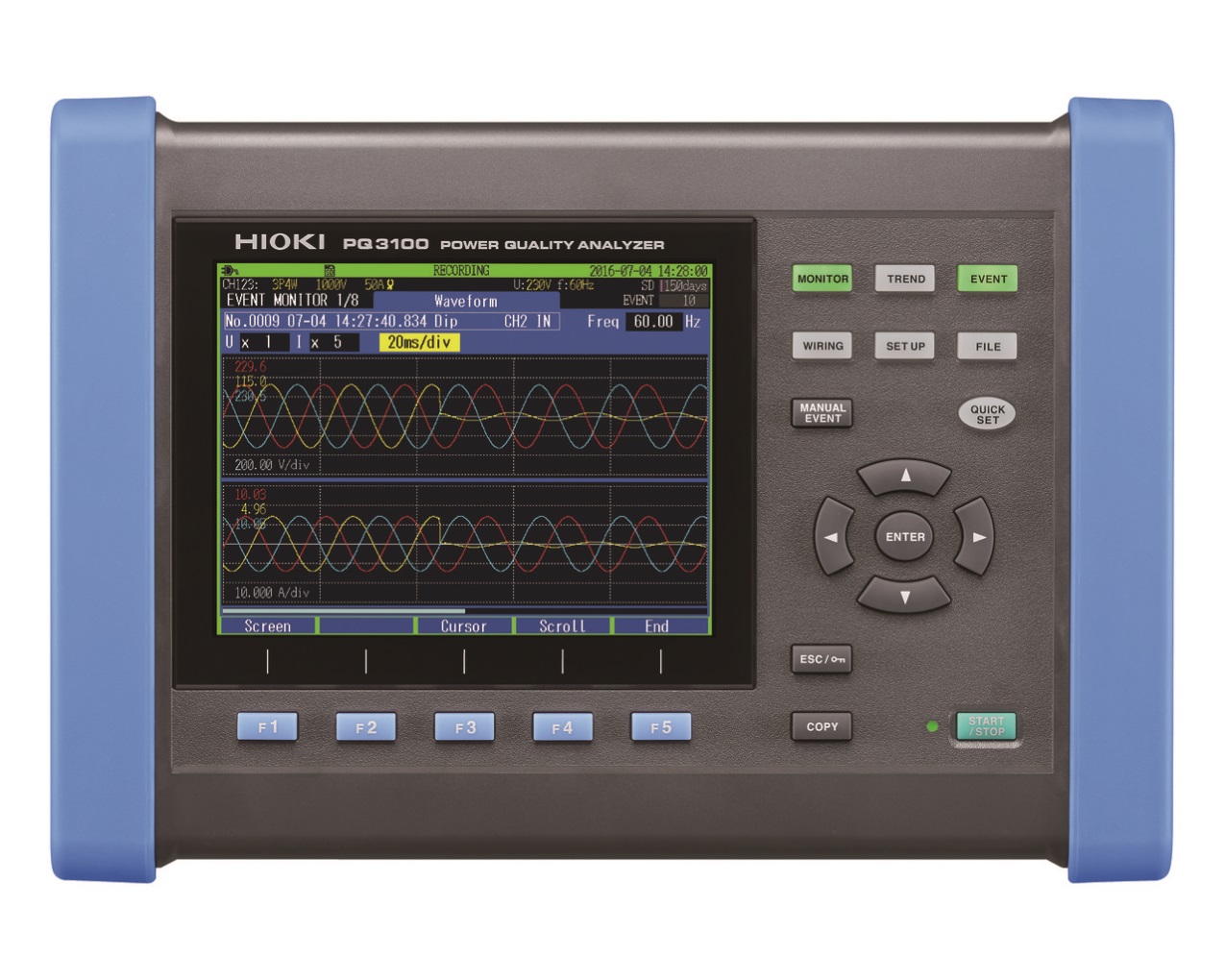

Measurement line type: Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel CH4 for voltage/current
Voltage ranges: Voltage measurement: 1000.0 V rms or DC, Transient measurement 2.200 kV peak
Current ranges: 50.000 mA … 5.0000 kA AC, 10.000 A … 2.0000 kA DC (depends on current sensor in use)
Power ranges: 50.000 W … 6.0000 MW (determined automatically based on current range in use)
Basic accuracy:
Voltage: ±0.2% of nominal voltage
Current: ±0.1 % rdg. ±0.1 % f.s. + current sensor accuracy
Active power: DC ±0.5 % rdg. ±0.5 % f.s. + current sensor accuracy, AC ±0.2 % rdg. ±0.1 % f.s. + current sensor accuracy
Measurement items:
Transient over voltage : 200 kHz sampling
Frequency cycle : Calculated as one cycle
Voltage (1/2) RMS, Current (1/2) RMS: one cycle calculation refreshed every half cycle
Voltage swell, Voltage dips, Voltage interruption, RVC (Ver.2.0 or later) : Voltage (1/2) RMS calculation
Inrush current : half-cycle calculation: Calculated as the current RMS value for current waveform data sampled every half-cycle.
Frequency 200 ms: Calculated as 10 or 12 cycles
10-sec frequency: Calculated as the whole-cycle time during the specified 10 s period
Voltage waveform peak, Current waveform peak
Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Apparent energy, Reactive energy, Energy cost, Power factor, Displacement power factor, Voltage unbalance factor, Current unbalance factor
Voltage crest factor, Current crest factor
Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0 th to 50 th orders
Harmonic voltage-current phase angle: 1 th to 50 th orders
Total harmonic distortion factor (voltage/ current)
Inter harmonic (voltage/ current): 0.5 th to 49.5 th orders
K Factor (multiplication factor)
IEC Flicker, Δ V10 Flicker
Record: Maximum recording interval: 1 year, Maximum number of recordable events: 9999 x 365 days
Interfaces: SD/SDHC memory card, RS-232C, LAN, USB 2.0, Bluetooth
Display: 6.5-inch TFT color LCD (640 x 480 dots)
Power supply: AC adapter, Battery pack
Continuous use: 8 hours
Charging time: Max. 5 hr 30 m with AC adapter
Dimensions: 300 x 211 x 68 mm
Weight: 2.5 kg
Standard set: Instruction manual, Measurement guide, Voltage cord L1000-05 set (Red/Yellow/Blue/Gray/Black, Alligator clip ×5, Spiral tube ×5), Color clip set, Spiral tube x5, AC adapter, Strap, USB cable (1 m 3.28 ft length), Battery pack Z1003, PQ ONE (software, CD)
