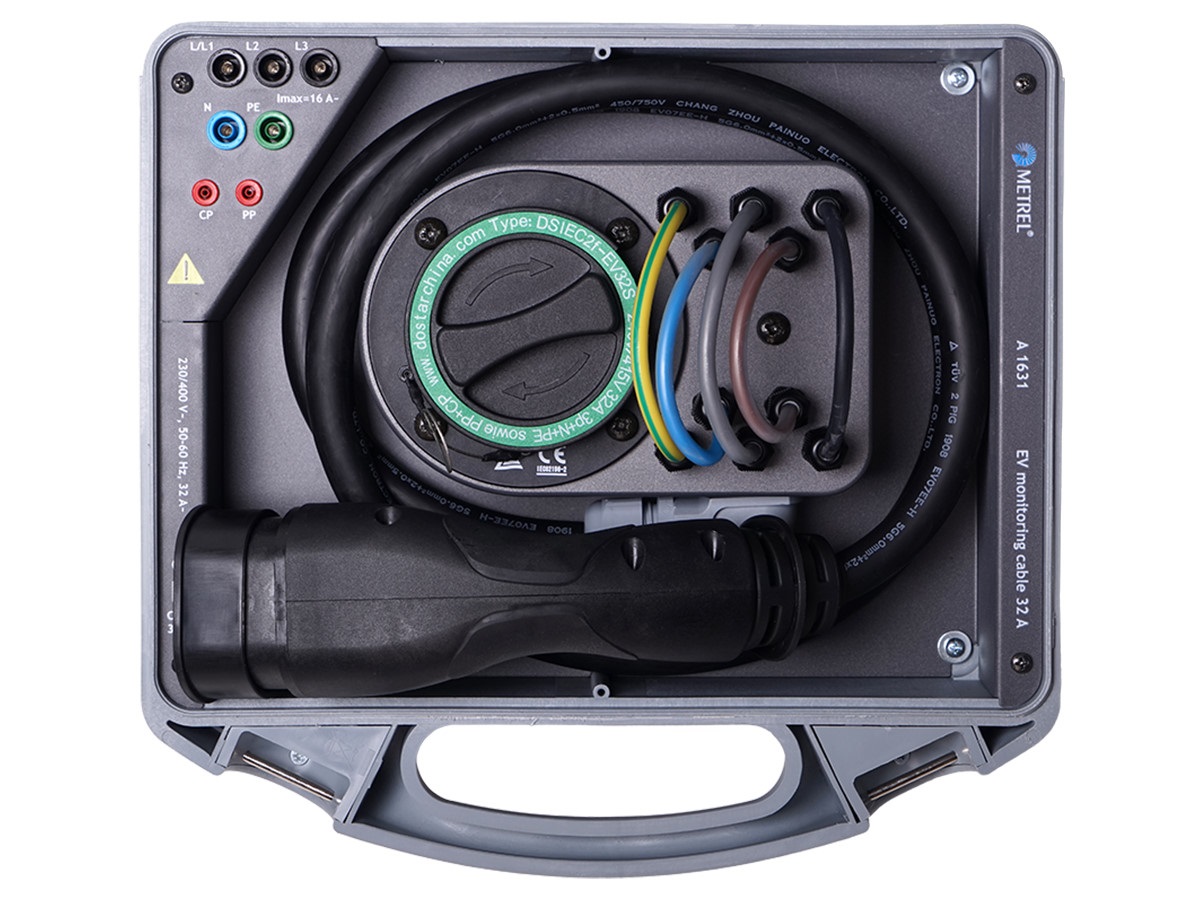

The A 1631 EV monitoring cable is a special accessory designed for CP signal, current and voltage monitoring during Electric Vehicle (EV) charging process in conjunction with supported Metrel testers and adapters. It is equipped with a Type 2 female plug connector to connect to an EV and a Type 2 male socket outlet for connecting to Electrical Vehicle Supply Equipment (EVSE).
Measurement functions
Max. charging current of a.c. EVSE with Type2 connectors: 32 A
Max. external load during EV simulation via banana plugs: 13 A
General
Mains power supply: 230 V / 400 V 3~ ±10%, 50 Hz … 60 Hz, 60 VA, 32 A
Degree of protection: IP 65
Dimensions: 36 x 16 x 33 cm
Working temperature: -10°C … 50°C
Standard set: Metrel A 1631 EV monitoring cable, Test lead (1,5 m, 5 pcs), Test cable (1 m, red with 2 mm banana plug, 2 pcs).
