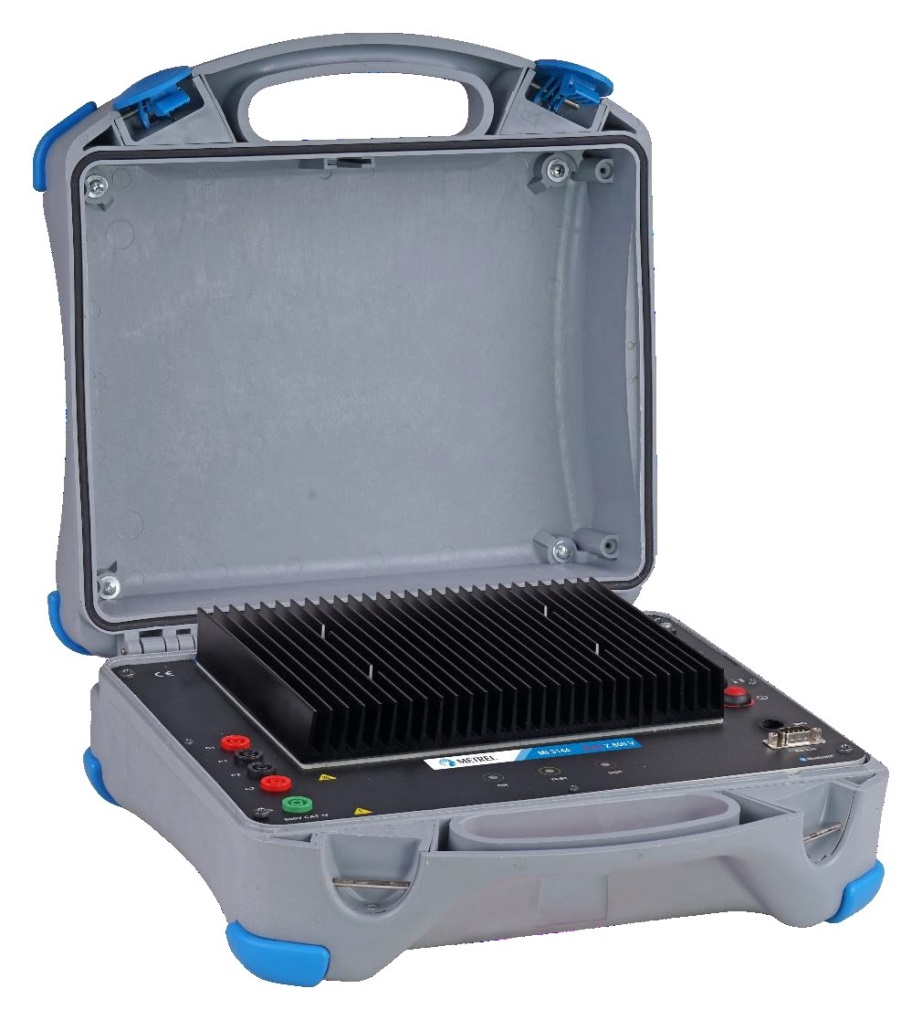

Metrel Euro Z 800 V (MI 3144) is a Multi-function, portable battery (Li-ion) or mains powered test instrument with excellent IP protection: IP65 (case closed), IP54 (case opened), intended for: high current line and loop impedance, DC source and line resistance testing, ELR testing and current measurement. It is designed and produced with the extensive knowledge and experience acquired through many years of working in this field.
Bluetooth and RS232 communication
Current measurement range when using current measurement clamps: 0,00 A … 5,99 kA
Ipsc/Ipfc calculation up to 400 kA
Impedance measurement:
Range: 0,1 mΩ … 199,9 mΩ; Resolution: 0,1 mΩ; Accuracy: ±(5% of reading + 3 m Ω)
Range: 200 mΩ … 1999 mΩ; Resolution: 1 mΩ; Accuracy: ±(5% of reading + 3 m Ω)
Range: 2,00 Ω … 19,99 Ω; Resolution: 10 mΩ; Accuracy: ±(5% of reading + 10 m Ω)
Nominal voltage range: 100 V … 800 V
Maximum test current (110 V): 60 A
Maximum test current (230 V): 126 A
Maximum test current (400 V): 219 A
Maximum test current (690 V): 377 A
Contact voltage:
Range: 0,0 V … 199,9 V; Resolution: 0,1 V
Range: 200 V … 999 V; Resolution: 1 V
Degree of protection: IP 65
Working temperature range: -10 °C … 50 °C
Dimensions: 36 x 16 x 33 cm
Weight: 7 kg.
Standard set: MI 3144 Euro Z 800 V, Large Kelvin test clips (A 1593), 2 pcs, Test lead 5 m, 2 pcs (black/red), Test tip, 2 pcs (red), Test tip, 2 pcs (black), Test lead 5 m, 2 pcs (green), G clamp, 1 pc, Crocodile clips, 2 pcs (black), RS232 cable (9 pin – PS2), Mains cable, Bag for accessories, Instruction manual, Calibration certificate.
