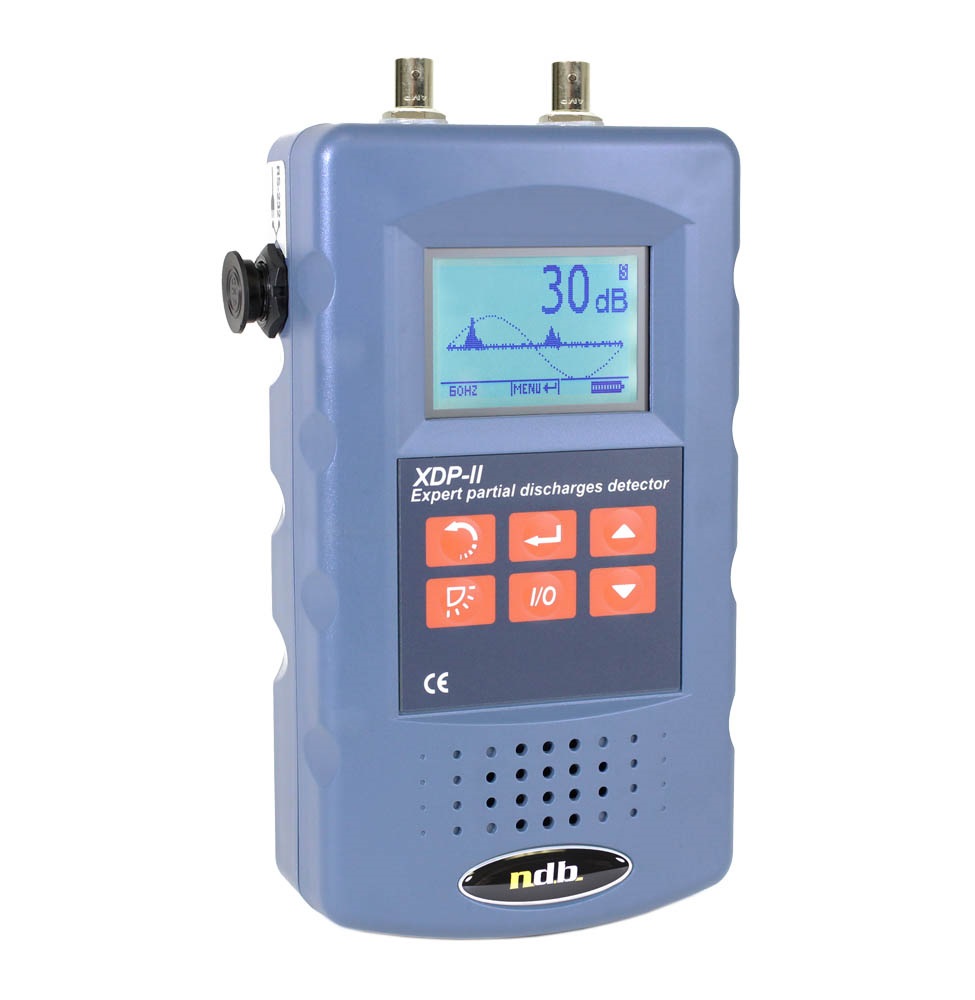

ndb XDP-II is a battery-operated portable device allowing partial discharge detection and analysis. The data is saved in its internal memory for local or further analysis on the PC-based XDP-SOFT. Paired with the proper accessories, the XDP-II becomes a powerful solution for many applications such as Cable Joints and Elbows, Switchgear, Offline, Acoustic, TEV, Rotating machines, Transformer, etc.
Dynamic Range: 60 dB
Data Storage: Over 380 recordings
Accuracy: ± 1 dB
Resolution: 1 dB
Bandwidth: 300 kHz … 70 MHz
Operating Phase Signal Range (50 Hz … 60Hz): 50 mVrms … 700 mVrms
Sensitivity: 5pC, depending on DUT capacitance
Auto shutdown: After 30 minutes of inactivity
Operating Temperature: -20°C … 50°C
Liquid Protection: Splash proof
Display: High contrast backlit LCD screen
Battery life: 7.5 hours
Batteries: NiMH, rechargeable
Charging: 3 hours
Dimensions: 203 x 114 x 51 mm
Weight: 0.86 kg
