PRO8 810.123 Short-circuiting (earthing) equipment

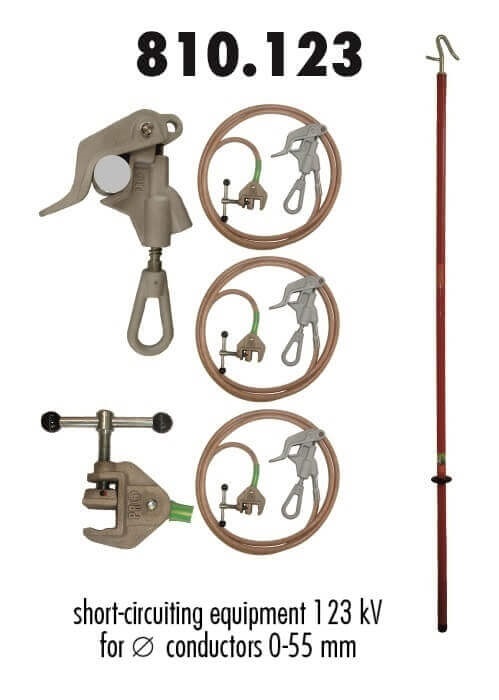

PRO8 810.123 – short-circuiting (earthing) equipment is designed for short-circuit making and earthing of the circuit in networks with an earthed node of the nominal voltage of up to 110 kV. The short-circuiting set consists of one insulating pole and three short-circuiting cables ended with conductor and universal earthing clamps to connect it to the conductor of circular cross section up to 55 mm in diameter. Conductor clamps are connected to earthing clamps by Cu cables in transparent isolation. Insulating pole is made of glass-fabric laminate which is suitable for its high electrical and mechanical resistance and stability.

Technical Information:

• PRO8 810.123.pdf
