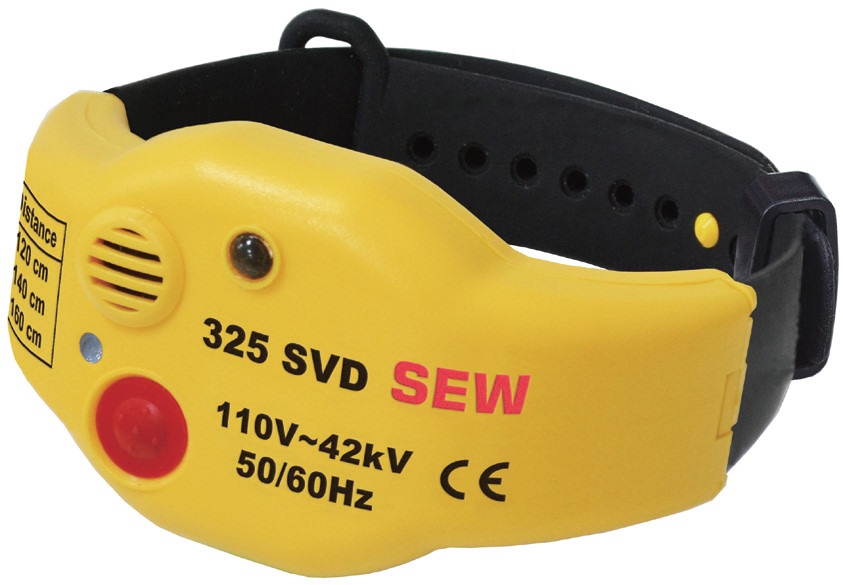

SEW 325 SVD is a voltage detector designed to detect AC high-voltage sources. It provides a clear warning to electrical engineers, power engineering personnel, firefighters, and instrument/equipment technicians when they approach a high-voltage source.
Features:
– Compact, lightweight, and easy to wear
– Easy and convenient to use
– Suitable for both indoor and outdoor use
– Waterproof design (IP65)
– Built-in self-test function
– Detects a wide range of AC high-voltage systems
– Low power consumption
– CE certified
Specifications:
– Warning distance: Up to 120 cm for 11 kV (phase-to-ground)
– Applicable frequency: 50/60 Hz
– Alarm volume: ≥65 dB at a distance of 1 meter
– Operating temperature and humidity: 0°C to 40°C / up to 80% RH
– Dimensions: 79 (L) × 33 (H) × 42 (D) mm, excluding watch strap
– Weight: 42 g, including battery
– Battery: CR2032
– Battery life: Approximately 50 hours of continuous operation
