Pile quality testing, concrete plate thickness measurement and defect detection.
– Automated calibration of pulse velocity
– Automated gain settings
– Large diameter piles supported
– Single-site comparison of all piles
– Single-shot or flexible heatmap for impact echo
– Defect / Object tagging
– Logbook for full traceability of testing and simplified report generation
– Simultaneous application of filter settings to all piles
Technical Specifications
– Range: >35 kHz, +/- 50 g
– Resonant frequency: > 50 kHz
– Sampling rate: 400 kSPS
– Weight: 144 g (Including battery)
– Battery: AA, regular or rechargeable
– Dimensions: 85 x 56 x 59 mm
– Connections: Bluetooth, USB-C

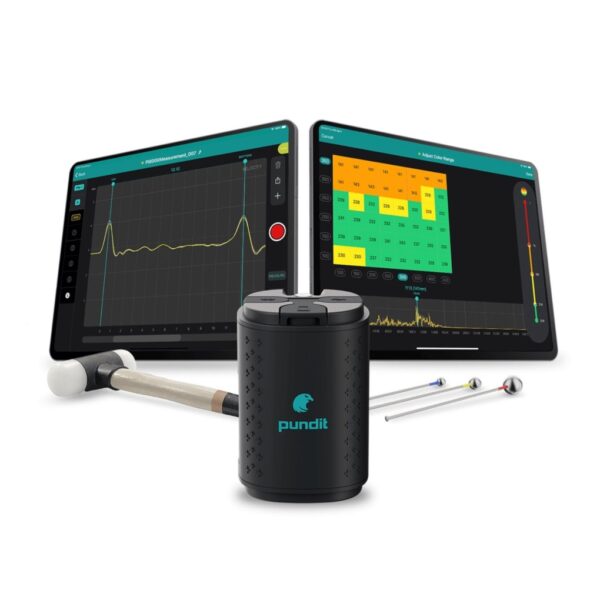

PUNDIT PI8000 IMPACT ECHO + PILE INTEGRITY SENSOR KIT consisting of: PI8000 probe, USB cable A to USB C 1.0 m, AA NiMH rechargeable battery 2300 mAh, Carrying strap, Hammer, Putty, Quick start guide and product certificates, carrying case
