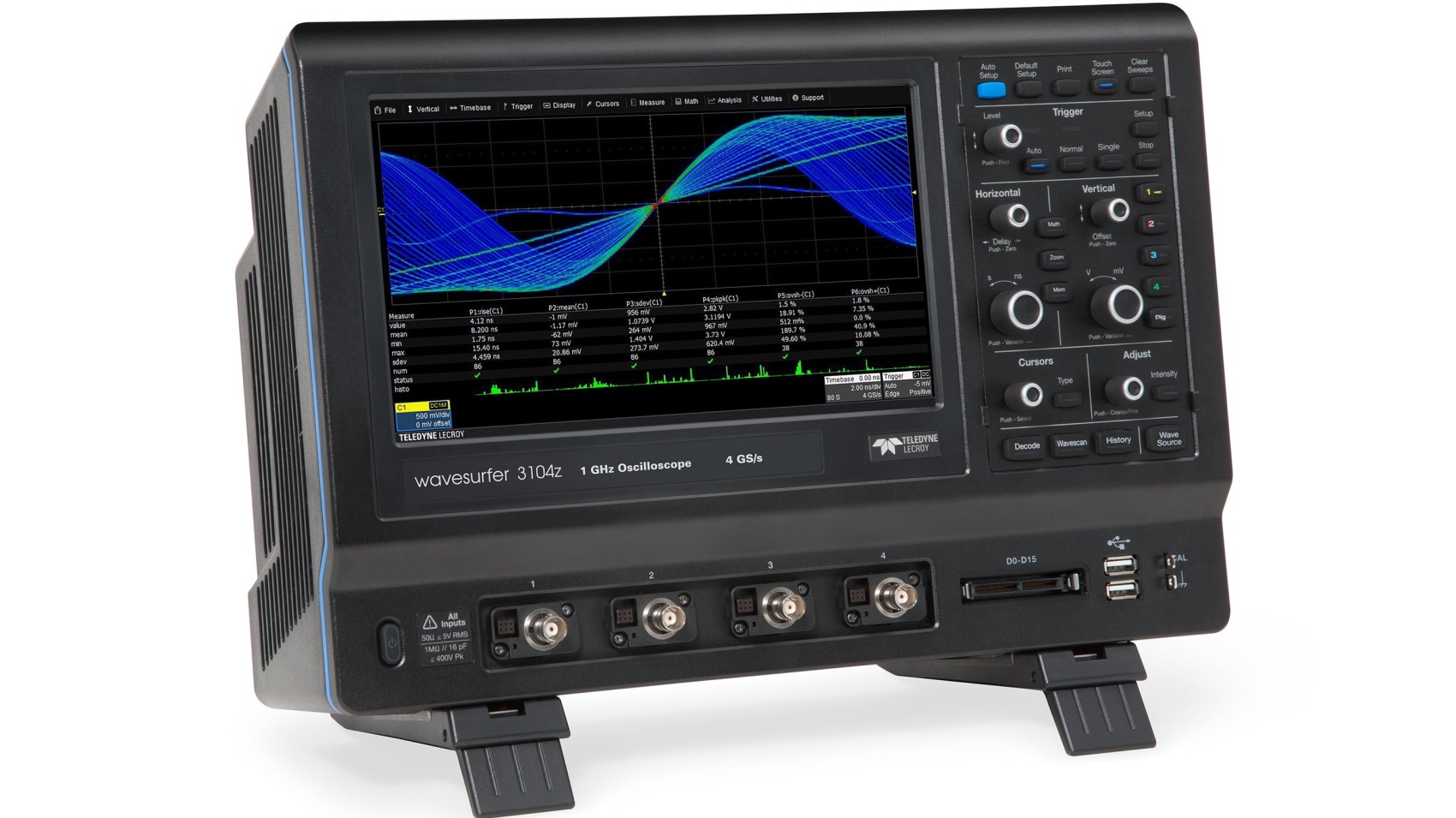

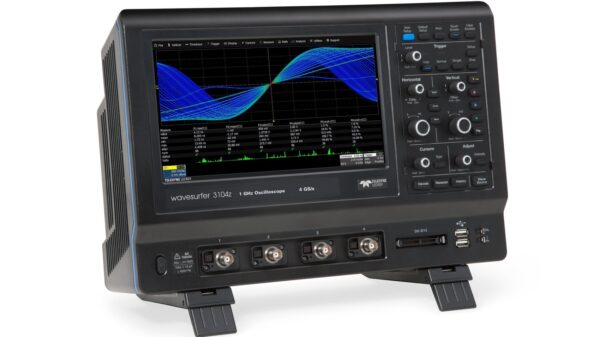

Standard set: Teledyne LeCroy Wavesurfer 3104z, 10 Passive Probe (Total of 1 Per Channel), 1 Micro SD card, Micro SD card adapter, Protective Front Cover, Getting Started Guide, Commercial NIST Traceable Calibration with Certificate, Power Cable, 3-year Warranty.
Specifications
- 550 MHz ... 1100 MHz bandwidthYes
- Bandwidth1 GHz
- 8 bit vertical resolutionYes
- ≥ 4 channelsYes
- Sensitivity1 mV/div ... 10 V/div
- Time base500 ps/div ... 100 s/div
- Sample rateup to 4 GS/s
- Channel memory20 Mpts
- Display1024 x 600 pixels, 10,1 inch
- Touch screenYes
- InterfaceEthernet, USB, DB-15
