Thermal image up to 640 x 512 pixels will show you the smallest of details and assure excellent measurement accuracy. The broad band FLIR A6752SC thermal imaging camera are designed to provide the best thermal measurement performance together with the most advanced connectivity. They are ideal for Scientists and R&D professionals that are working on the most demanding applications.

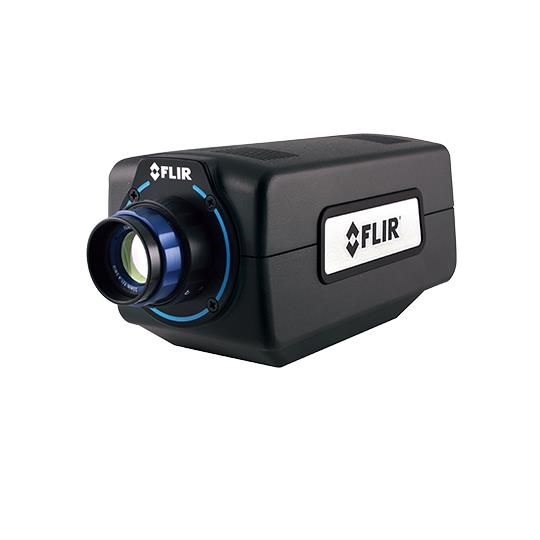

Flir A6753SC thermal camera
SKU: 3222
Specifications
- Detector640 x 512
- Spectral range3 µm ... 5 µm
- Detector typeCooled
- Image frequencyfrom <1 Hz up to 125 Hz (full frame)
- Max image frequency4130 (in windowing)
- Subwindow modeup to 16 x 4, (steps of 16 columns, 4 rows)
- Thermal sensitivity (NETD)<25 mK
- Temperature measurement range-20 °C ... +350 °C
- Accuracy≤ 100°C ±2 °C (±1 °C typical), > 100°C ±2% of reading
- Integration time480 ns to full frame period
- Step160 ns
- Readout modesAsynchronous IWR / ITR
- Field of viewDepending on lens
- FocusManual
- External triggerYes
- SynchronizationYes
- Labview, Matlab compatabilityYes
- Changeable lensYes
- Input/outputSync In/Out, Video out
- InterfacesGigE
- Operating temperature range-20 °C ... +55 °C
